MAXAM CAN-BUS INTERFACES

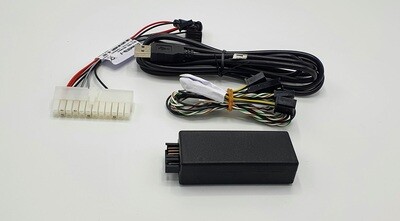

Find CAN signals on a vehicle easily and quickly thanks to the MAXAM CAN-bus interface CBI-8. This module is compatible with more than 800 vehicles and easy to connect (ground, positive continuous, CAN high and CAN low).
Installation difficulties?
Our MAXAM CAN-bus interfaces offer an immediate solution.
The installation of the most common products like alarms, satellite systems, car radios, multimedia, etc. is becoming more and more difficult and complicated. Herewith our MAXAM CAN-bus interfaces offer a quick and reliable solution.
- Time-saving
- Automatic configuration per car type
- Update new car types protocol
- Low power consumption < 4.5 mA
- Protected in- and outputs
- Easy to fit
MAXAM CAN-bus CBI-8 - available signals:
- Ignition ON (+15)
- Speed pulse - 1 Hz per km
- RPM engine - 1 Hz per 4 RPM
- Foot brake
- Reverse signal
- All doors or hood opening
Other signals are possible on demand.
You can download the application list here.
You can download the application list with all vehicle specific signals here
Download all output signals CAN bus
canbus
cbi
Refine by
CAN-bus programmer CBI-8/HPS845 with software
CAN-bus programmer CBI-8/HPS845 with software
SKU 001.50.201
€110,72
